Tehnične specifikacije
Performance:
– Three independent sound sections Organ, Piano and Sample Synth that can be used simultaneously as a layer or a split
– 6 Keyboard Split points (C3-F5) with Split Point Crossfade functionality
– Organize/Page mode: Group sets of up to four Programs into Pages, and arrange these using the Organize mode
– 4 Live Slots
– External keyboard feature: Freely assign sound engines to be controlled by an external keyboard, while others are played from the Nord Electro 6.
Keybed:

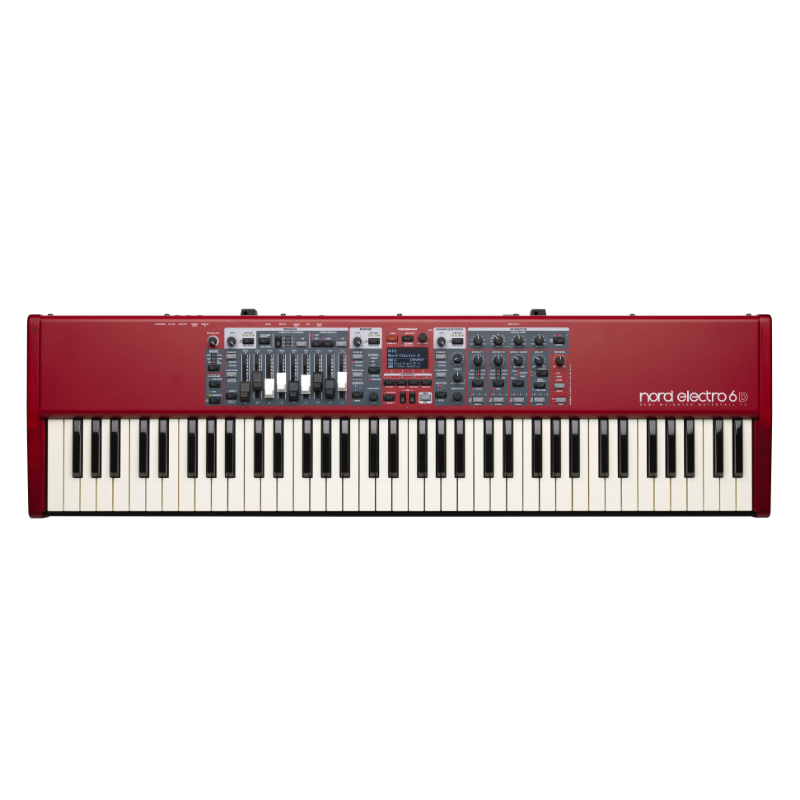

– Nord Electro 6D 73: 73-key (6 octaves, E-E) Velocity sensitive Semi Weighted Waterfall keyboard

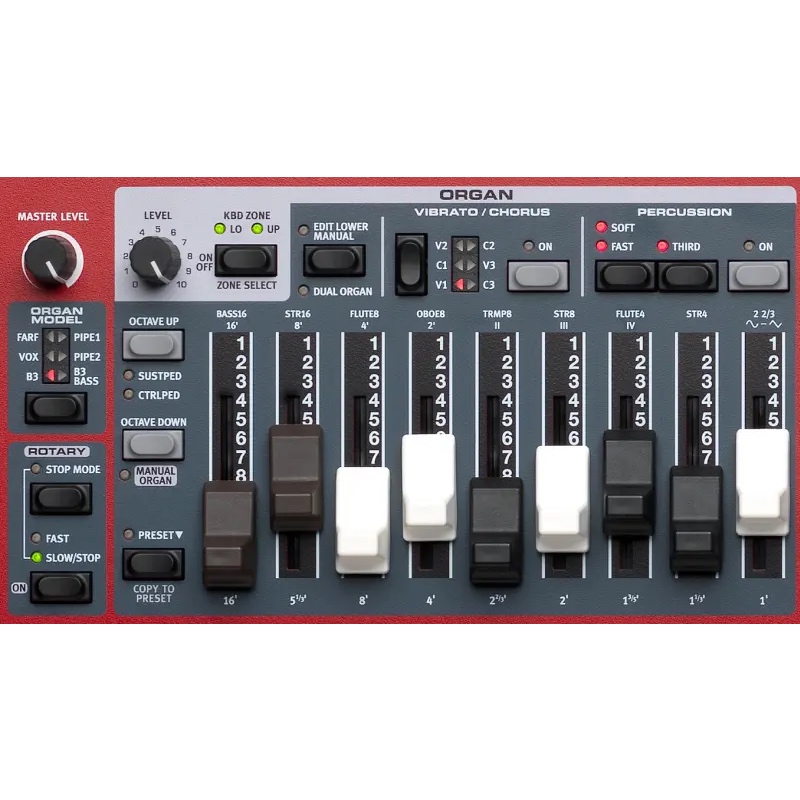

Organ Section:
– C2D B3 Tonewheel, B3 Bass, Vox, Farfisa and 2 Pipe organ models
– User adjustable percussion levels, percussion decays and key click level
– Vibrato / Chorus Control with separate functionality for each model (the classic C1, C2, C3, V1, V2, V3 options for the B3, Vibrato for the Farfisa, Chorus/Detune for Pipe organ models )
– 3 Tonewheel modes: select the level of “vintage” desired
– Dual Organ mode for control of two independent manuals
– Manual Organ mode
– Mount for Half-Moon Switch on Electro 6D 61/73
– Nord Electro 6D 61/73: 9 Physical drawbars
– Nord Electro 6 HP: Digital LED drawbars

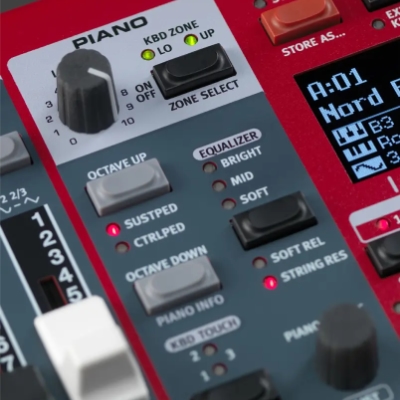

Piano Section:
– Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
– Each category can contain several different models.
– All pianos can be replaced using the Nord Sound Manager application
– Advanced String Resonance-control (Gen 2)
– Soft Release
– EQ/Filter
– 4 Dynamic Curves
– Stereo pianos and samples can be played back in mono
– 120 Voices polyphony for Piano Library sounds.
Sample Synth Section:
– All samples can be replaced using the Nord Sound Manager application
– The Sample Synth section comes shipped with an extensive selection of one hundred samples from the Nord Sample Library
– Attack and Decay/Release control
– 4 levels of dynamic velocity control
– Velocity sensitive low pass filter
– 46 voice polyphony for Sample Library sounds.

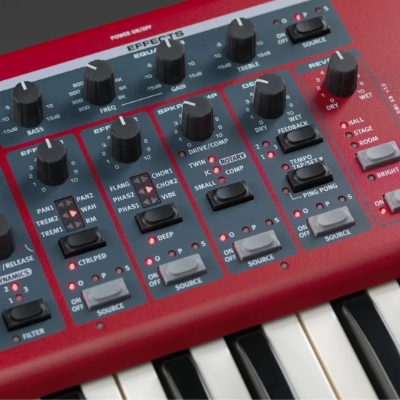

Effect Section:
Effect 1:
– Pan, Tremolo, Wah and Ring Modulator
– Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob
– Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal
Effect 2:
– Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe
– Two selectable depths for each effect
Amp Simulations:
– Comp/Amp – three amp/speaker simulations, compressor, C2D 122 rotary speaker, Tube Overdrive
– Drive/Compression amount controlled with the Drive knob
– Rotary speed controls – Slow, Fast and Stopped
– Close or Normal microphone placement for 122 Rotary Speaker simulation
– User adjustable rotary treble and bass rotor speeds and acceleration rates
– Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation
Master Effects:
– Dedicated Reverb with 3 modes – Room, Stage and Hall – all with optional Bright Mode and Dry/Wet control
– Dedicated Delay Effect – Rate, Amount, Tap-tempo and Stereo Ping Pong
*All effects in Stereo
