Tehnične specifikacije
General:
– Master Level Control
– Wooden Pitch Stick
– Modulation Wheel
– 512 Programs – 8 Banks with 8 Pages each. Each Page has 8 Program locations
– Preset Library with Organ, Piano and Synth Presets including effects. 2×64 Organ Preset locations, 2×64 Piano Preset locations, 8×64 Synth Preset locations.
– 8 Live Programs
– 2 Individual Layer Scene Setups
– 3 Morph sources: Modulation Wheel (also controllable by Swell pedal), – Control Pedal, Aftertouch
– Stereo and Mono output routing options
– Programmable Transpose +/- 6 semitones
– Master Clock functionality with manual, external and tap-tempo rate control
– Internal and MIDI clock source
– MIDI over USB functionality
– Level control
– Aftertouch
– Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones
– 3 Split Point width (crossfade) options: Lrg, Sml or Off

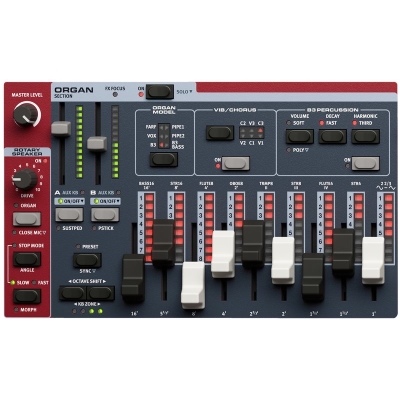

Organ Section:
– Nord C2D B3 Tone wheel Organ simulation
– Vox Continental and Farfisa models
– 2 Digital Pipe Organ models
– B3 Bass mode
– Physical Drawbars with LED graphs
– Preset or Drawbar Live mode
– Percussion controls
– Vibrato / Chorus control
– 2 Layers (2-Part Multitimbral)

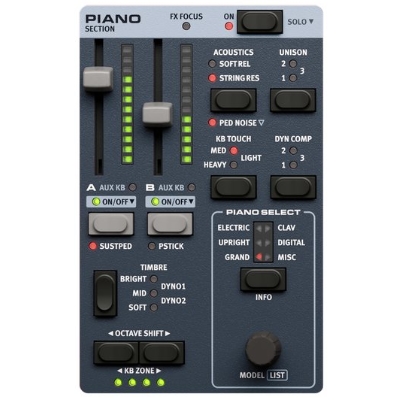

Piano Section:
– 2 GB memory for Piano sounds
– All sounds can be replaced using Nord Sound Manager (Mac/Win)
– 120 Voice Polyphony
– Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
– 3 Selectable Keyboard Touch Curves (Heavy, Medium, Light)
Piano Timbre controls with custom settings for Electric Pianos and Clavinet
– String Resonance for acoustic Grand Pianos and Uprights
– Selectable Soft Piano Release
– Pedal Noise when used with Nord Triple Pedal 1, Nord Triple Pedal 2 or Nord Sustain Pedal 2 on selected acoustic and electric pianos
– Dynamic Compression
– Unison functionality
– 2 Layers (2-Part Multitimbral)

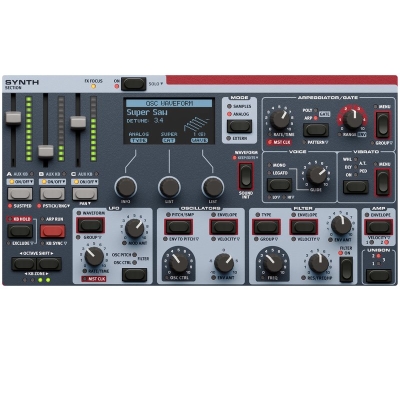

Synth Section:
– Nord Wave 2 Synth Engine with Sample Playback
– Dedicated OLED Display for Waveform/Sample selection and parameter editing
– 1 GB memory for Nord Sample Library
– All samples can be replaced using Nord Sound Manager (Mac/Win)
– 46 Voice polyphony
– Oscillator Types: Analog (incl. Super, Noise and Misc waveforms), Digital Waves, FM and Sample
– Analog Waveform options: Pure, Shape, Shape Sine, Multi, Super, Sync, Bell, Misc (Noise)
– Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter
– Filter Drive: Off, 1, 2 and 3
– Filter Tracking: Off, 1/3, 2/3 and Full
– 3 Unison modes
– Vibrato modes controllable from Mod Wheel, Aftertouch and pedal.
– Filter envelope (Attack, Decay/Sustain, Release) with Velocity control
– Amplitude envelope (Attack, Decay/Sustain, Release) with Velocity control
– Oscillator envelope (Attack, Decay/Sustain, Release) with Velocity control
– LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold
– Advanced Arpeggiator with Arp, Polyphonic and Gate modes
– Arpeggiator Patterns for all modes, with Accent and Pan options
– LFO and Arpeggiator synchronizable to Master Clock
– 3 Layers (3-Part Multitimbral)

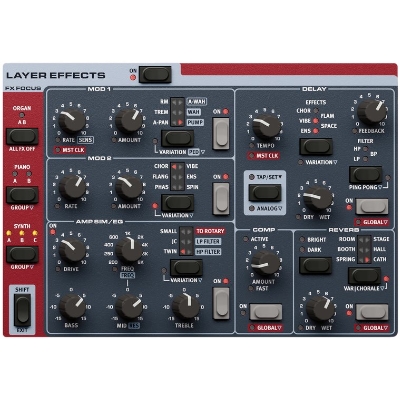

Effects:
– Mod 1: Tremolo, Auto Pan, Ring Modulator, Wah-Wah, Auto-Wah, Pump (Sidechain modulation). Variation for each effect
– Mod 2: Phaser, Flanger, Vibe, Chorus, Ensemble, Spin. Variation for each effect
– Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP), Feedback Effects with Variations and panel selectable Analog mode.
– 3 types of Amp/Speaker simulations, Twin, JC and Small. Variation for each model
– Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls
– Tube amp simulation with adjustable overdrive
– 3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz – 8 kHz and 4 kHz
– Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
– Effect rates/tempo can be synchronized to the Master Clock
– Compressor with Fast Mode
– Reverb: 6 algorithms (Spring, Booth, Room, Stage, Hall and Cathedral) with Dark/Bright modes and Variation/Chorale options
Keyboard:
– Nord Stage 4 88: 88-key Triple Sensor Hammer Action (medium) keyboard with Aftertouch.
Range: A-C
Connections
– 4 Assignable Audio Outputs – ¼”, 6,35 mm jacks, unbalanced
– Stereo Headphone output – ¼”, 6,35 mm stereo jack
– 1 Monitor input – 1/8″, 3,5 mm stereo jack
– Sustain Pedal – ¼”, 6,35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals
– Triple Pedal – 5 pin DIN connector. Compatible with Nord Triple Pedal 2
– Rotor Pedal – ¼”, 6,35 mm jack.
Use a momentary pedal or a switch type pedal.
– Organ Swell Pedal – ¼”, 6,35 mm TRS stereo jack.
– Control Pedal – ¼”, 6,35 mm TRS stereo jack.
– Foot Switch input – ¼”, 6,35 mm jack.
Use a momentary two-button pedal or a single switch type pedal.
– MIDI In – 5 pin DIN connectors
– MIDI Out – 5 pin DIN connectors
– USB – type B connector for USB MIDI, Software Update and Sound Transfer
– Power Cord with IEC C14 connector
Included Accessories:
– Single Pedal 1 included with Stage 4 73 and 88
– User Manual
– Power cord
– USB cord
Dimensions:

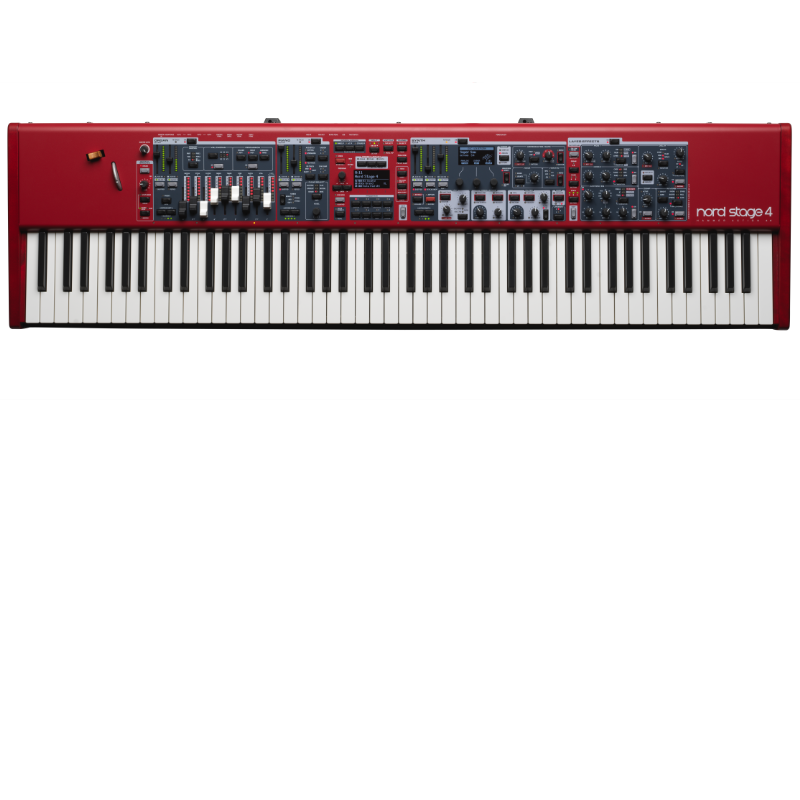

Nord Stage 4 88:
1282 mm (50.5″), 121 mm (4.7″), 349 mm (13.7″)
Weight:
Nord Stage 4 88: 19.6 kg (43.2 lb)
